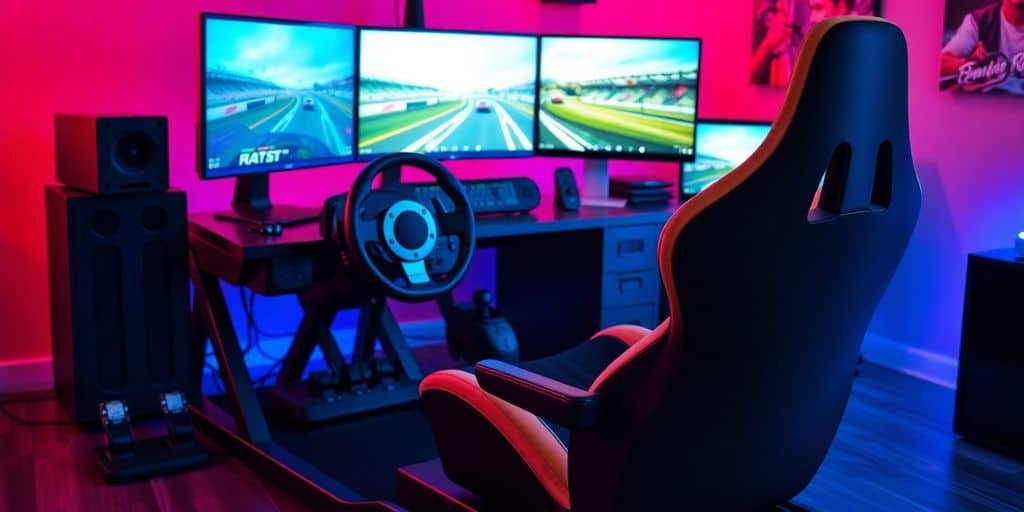

Ultimate Guide to Building Your Own Racing Sim Cockpit for an Immersive Experience

Bet Update

If you’re looking to dive into the exciting world of sim racing, building your own racing sim cockpit is a fantastic way to enhance your experience. Whether you’re a seasoned racer or just starting out, having a dedicated setup can make all the difference. This guide will walk you through the essentials of designing, constructing, and personalizing your racing sim cockpit, ensuring that you get the most immersive experience possible.

Key Takeaways

Design your racing sim cockpit with ergonomics in mind for comfort and efficiency.
Choose high-quality materials that suit your budget and needs, such as aluminum or wood.
Properly position your screens or VR headset for the best field of view and immersion.
Assemble your cockpit carefully, ensuring all components are securely mounted and accessible.
Personalize your setup with unique accessories and designs to make it truly yours.

Designing Your Racing Sim Cockpit

Key Design Considerations

When you’re starting to think about your sim racing cockpit, there are a few big things to keep in mind. First, think about what kind of racing you’ll be doing. Are you into Formula 1, rally racing, or something else? This will influence the type of wheel, pedals, and seat you’ll want. Also, consider the space you have available. A full-blown cockpit can take up a lot of room, so measure your space before you start planning.

Here’s a quick list of things to consider:

Available space
Type of racing you enjoy
Budget
Comfort

Don’t be afraid to start small and upgrade later. You don’t need to buy everything at once. It’s better to start with the essentials and then add more features as you go. This way, you can spread out the cost and make sure you’re really getting what you want.

Choosing the Right Materials

The materials you use for your cockpit can make a big difference in terms of durability, stability, and overall feel. Aluminum is a popular choice because it’s strong and lightweight. Wood is another option, and it can be more affordable. You can even use PVC pipe if you’re on a tight budget and want to get creative. Cockpit Materials are important for the overall experience.

Here’s a comparison of common materials:

Material	Pros	Cons
Aluminum	Strong, lightweight, adjustable	More expensive
Wood	Affordable, easy to work with	Can be less durable than aluminum
PVC Pipe	Very affordable, lightweight	Not as strong or stable as other options

Optimizing Screen Placement

Screen placement is key to immersion. Most sim racers use a single monitor, a triple monitor setup, or a VR headset. Triple monitors can give you a wider field of view, while VR headsets can put you right in the driver’s seat. Screen Placement should be at eye level and about an arm’s length away. You’ll also want to adjust the field of view (FOV) in your racing game settings to match your setup.

Here are some options for screen setups:

Single Monitor: Simple and affordable. Good for beginners.
Triple Monitors: More immersive, wider field of view.
VR Headset: Most immersive, 360-degree view.

Understanding Sim Racing Hardware

So, you’re ready to dive into the world of sim racing? Awesome! But before you start burning rubber (virtually, of course), it’s important to get familiar with the hardware that’ll make it all happen. It’s more than just a game; it’s about creating a realistic experience, and that starts with the right gear. Let’s break down what you need to know.

Essential Hardware for Your Setup

Okay, let’s talk about the must-haves. You can’t race without a car, and in sim racing, you can’t race without the right equipment. The core of any sim racing setup includes a racing wheel, pedals, and a way to see the game – either a monitor or a VR headset. These components work together to simulate the feeling of driving a real race car. Here’s a quick rundown:

Racing Wheel: This is your primary interface with the game. It allows you to steer and feel the car’s response.
Pedals: These control your acceleration, braking, and sometimes clutch. The quality of your pedals can significantly impact your control and immersion.
Monitor/VR Headset: You need a way to see the track! A single monitor is a good starting point, but many racers upgrade to triple monitors or a VR headset for a more immersive experience.
A sturdy racing chassis: A racing seat and framework to attach your wheel, pedals, shifter, and other peripherals. It keeps everything sturdy and correctly positioned.

Think of it like building a real race car. You wouldn’t skimp on the engine or the tires, right? The same goes for your sim racing setup. Investing in quality hardware will make a huge difference in your experience.

Choosing the Right Racing Wheel

The racing wheel is arguably the most important part of your setup. It’s what connects you to the car and provides feedback from the game. There are a few things to consider when choosing a wheel:

Force Feedback: This is what allows you to feel the road, the tires slipping, and the weight of the car. Stronger force feedback generally means a more realistic experience.
Wheel Type: There are different types of wheels, including gear-driven, belt-driven, and direct-drive. Direct-drive wheels offer the most realistic and powerful force feedback, but they’re also the most expensive.
Build Quality: A well-built wheel will last longer and provide a more consistent experience. Look for wheels with metal components and durable construction.

Importance of Force Feedback

Force feedback is what separates sim racing from arcade racing. It’s what allows you to feel what the car is doing and react accordingly. Without force feedback, you’re essentially driving blind. Here’s why it’s so important:

Realism: Force feedback simulates the forces you would feel in a real race car, such as the weight of the steering, the grip of the tires, and the bumps in the road.
Control: By feeling these forces, you can better control the car and react to changes in the track conditions.
Immersion: Force feedback adds a whole new level of immersion to the sim racing experience. It makes you feel like you’re actually in the car.

Here’s a simple table illustrating the differences between different force feedback types:

Feature	Gear-Driven	Belt-Driven	Direct-Drive
Force Feedback	Basic	Good	Excellent
Smoothness	Low	Medium	High
Price	Low	Medium	High
Realism	Low	Medium	High
Durability	Medium	Medium	High

Choosing the right hardware can be tough, but hopefully, this gives you a good starting point. Happy racing!

Construction and Assembly Techniques

Step-by-Step Assembly Guide

Alright, you’ve got all your parts, now it’s time to put it all together. Remember, there’s no single "right" way to do this – it’s all about what works best for you. Let’s dive in!

First, clear your workspace. You’ll want plenty of room to move around and keep things organized. Good lighting is a must, too. Trust me, you don’t want to be fumbling around in the dark trying to find that one tiny screw.

Next, start with the simulator cockpit frame. This is the backbone of your whole setup, so make sure it’s solid. Aluminum frames are popular because they’re strong and easy to adjust. Follow the instructions that came with your frame, and don’t be afraid to ask for help if you get stuck.

Once the frame is up, mount your racing seat. Get the height and angle just right so you can reach the pedals and wheel without straining. You want to feel like you’re actually in a race car, not doing some weird yoga pose.

Now, let’s talk about the gear shifter. Some people like it on the right, some on the left. Put it wherever feels most natural to you. Just make sure it’s easy to reach and doesn’t wobble around when you’re shifting gears. If you are using a Gear Shifter, make sure it’s mounted solidly.

Customizing Your Layout

This is where things get really fun. Don’t be afraid to experiment with different layouts until you find one that feels perfect. Here are a few things to consider:

Screen placement: Where you put your screen(s) can make a huge difference in immersion. Try different distances and angles to see what works best for your field of view.
Pedal position: Adjust the spacing and angle of your pedals to match your natural driving position. Some people like them close together, others prefer them further apart.
Accessory placement: Think about where you want to put things like your keyboard, mouse, and button box. You want them to be within easy reach without getting in the way.

Remember, this is your racing sim cockpit. Don’t be afraid to break the rules and do things your own way. The most important thing is that you’re comfortable and having fun.

Safety Tips During Assembly

Okay, let’s talk safety. Building a racing sim cockpit isn’t exactly rocket science, but it’s still important to take precautions. Here are a few tips to keep in mind:

Wear safety glasses: You don’t want to get metal shavings or wood splinters in your eyes.
Use the right tools: Don’t try to force things with the wrong tools. You’ll just end up stripping screws or breaking something.
Get help if you need it: If you’re struggling with a particular step, don’t be afraid to ask a friend or family member for help. Two heads are always better than one.
Take breaks: Building a racing sim cockpit can be tiring. Take breaks to stretch your legs and rest your eyes. You’ll be less likely to make mistakes if you’re not exhausted.

And most importantly, have fun! Building your own racing sim cockpit is a rewarding experience, so enjoy the process. And when you’re finished, get ready to hit the track and experience the thrill of virtual racing like never before. Consider adding some Sim Racing Cockpit Accessories to increase comfort.

Enhancing Comfort and Ergonomics

Adjusting Seat Position

Okay, so you’ve got your racing seat. Now what? Getting the seat position right is super important. It’s not just about comfort; it’s about being able to reach everything easily and maintain focus during those long races. The goal is to minimize strain and maximize control.

Think about it like this:

Can you comfortably reach the pedals without stretching too much?
Is your back properly supported? A lumbar support cushion can be a game-changer.
Are your arms at a comfortable angle to the wheel? You don’t want to be reaching too far or be too close.

Experiment with different positions until you find what feels best. Small adjustments can make a big difference. Don’t be afraid to try out different racing seats either; some are just better suited for certain body types.

Pedal Placement Strategies

Pedal placement is another key area. You want to be able to apply the right amount of pressure without any awkwardness. Here’s what I’ve learned:

Heel and Toe: If you’re into heel-and-toe downshifting, make sure the brake and accelerator pedals are close enough together. Some pedal sets let you adjust the spacing.
Angle: The angle of the pedals matters too. Some people prefer a more upright position, while others like a flatter angle. Again, it’s all about personal preference.
Distance: The distance from your seat to the pedals is crucial. Your legs should be slightly bent when fully pressing the pedals. This prevents fatigue.

I remember one time I spent hours racing with my pedals too far away. My legs were killing me by the end of it. Now I always make sure to double-check the distance before I start a session.

Incorporating Accessories for Comfort

Little things can really add up when it comes to comfort. Here are some accessories I’ve found helpful:

ButtKicker: This thing adds a whole new level of immersion by vibrating your seat based on in-game events. It’s not just for fun; it actually helps you feel what the car is doing.
Adjustable Keyboard Tray: Having a keyboard and mouse within easy reach is super convenient for navigating menus and making adjustments on the fly. Look for one that’s adjustable so you can dial in the perfect position.
Cable Management: Keep those cables tidy! Nothing’s worse than tripping over a bunch of wires in the middle of a race. Use zip ties or cable sleeves to keep everything organized. You can also look into sim racing cockpit accessories to keep everything tidy.

And don’t forget about the basics like good lighting and ventilation. A well-lit and well-ventilated space will make a big difference in your overall comfort and focus.

Integrating Technology for Immersion

Setting Up Audio Systems

Good audio is super important for feeling like you’re really in the race. It’s not just about hearing the engine; it’s about picking up on subtle cues that can improve your performance. Think about the screech of tires as you’re pushing the limit or the change in engine tone as you shift gears. These sounds give you feedback that you can use to fine-tune your driving.

Surround sound systems are a popular choice because they place you right in the middle of the action. You can hear cars approaching from different directions, which adds a layer of realism and can help with spatial awareness.
Headphones are another great option, especially if you want to block out distractions. A good pair of gaming headphones will deliver clear, directional audio, so you can pinpoint where sounds are coming from.
Bass shakers can be added to your seat to simulate the vibrations of the engine and the road. This tactile feedback adds another dimension to the experience and makes it feel more immersive.

Don’t underestimate the power of good audio. It can make a huge difference in how realistic your sim racing experience feels. Experiment with different setups to find what works best for you.

Utilizing VR Headsets

VR headsets can completely change the way you experience sim racing. Instead of looking at a screen, you’re in the car, with a full 360-degree view of the track. It’s the closest thing to actually being there, and it can make the experience incredibly immersive. iRacing has been supporting the Oculus Rift for years.

However, there are a few things to keep in mind if you’re considering VR. First, you’ll need a powerful PC to run the headset and the game at the same time. VR headsets require high frame rates to avoid motion sickness, so you’ll need a graphics card that can handle the load. Second, VR can be a bit disorienting at first, and it may take some time to get used to it. Some people experience motion sickness, especially when they first start using VR. Finally, VR headsets can be expensive, so it’s worth doing your research before you invest in one.

Implementing Motion Platforms

Motion platforms take sim racing to the next level by adding physical movement to the experience. These platforms move and tilt in response to what’s happening in the game, simulating the feeling of g-forces, bumps, and other sensations. It’s like being on a real racetrack, feeling every turn and bump in the road.

Motion platforms come in different shapes and sizes, from simple seat movers to full-motion rigs that can simulate almost any driving condition. They can be expensive, but they add a level of realism that’s hard to match with other technologies. Here’s a quick comparison of different motion platform types:

Platform Type	Description	Cost	Immersion Level
Seat Mover	Moves the seat to simulate bumps and vibrations	Moderate	Medium
2DOF Platform	Adds pitch and roll motion	High	High
Full-Motion Platform	Simulates all six degrees of freedom	Very High	Very High

If you’re serious about sim racing and want the most realistic experience possible, a motion platform is definitely worth considering. Just be prepared to spend some money and dedicate some space to your setup.

Upgrading Your Racing Sim Cockpit

So, you’ve got your basic sim racing cockpit set up. Awesome! But the fun doesn’t stop there. The beauty of this hobby is that you can always make it better, faster, more immersive. Let’s talk about taking your rig to the next level.

Identifying Upgrade Opportunities

Okay, first things first: where are the weak spots in your current setup? Is your wheel base feeling a little…meh? Are your pedals slipping all over the place? Is your screen resolution making those apexes look like blurry blobs? Identifying these areas is the first step to a truly personalized and effective upgrade path. Think about what’s holding you back from shaving off those precious tenths of a second.

Here are some common upgrade areas:

Wheel and Pedals: Obvious, right? A better wheel with stronger force feedback or load cell pedals can make a HUGE difference.
Screen Setup: Single monitor? Consider an ultrawide or even a triple screen setup for a wider field of view. VR is also an option for total immersion.
Cockpit Rigidity: Is your rig flexing under heavy braking? A sturdier frame will improve feel and consistency.
PC Components: If you’re on PC, a faster graphics card or CPU can boost frame rates and visual fidelity. Don’t forget about fast SSD storage!

Balancing Cost and Performance

Alright, let’s be real: sim racing upgrades can get expensive FAST. You need to figure out what gives you the most bang for your buck. A $2000 wheel might be amazing, but is it really worth it if your PC can barely run the game at a decent frame rate? Prioritize upgrades that will have the biggest impact on your experience.

Consider these points:

Diminishing Returns: The jump from a $200 wheel to a $500 wheel is often bigger than the jump from a $500 wheel to a $1000 wheel.
Used Market: Don’t be afraid to buy used gear! You can often find high-end components at a fraction of the price.
DIY Solutions: Sometimes, a little ingenuity can save you a lot of money. For example, you could build your own button box instead of buying one.

Future-Proofing Your Setup

Nobody wants to buy a new piece of gear only to have it become obsolete in a year. Think about the future when you’re planning your upgrades. Will that new wheel be compatible with the next generation of consoles? Will your PC be able to handle the latest sim racing titles? It’s impossible to predict the future perfectly, but you can make informed decisions to extend the lifespan of your setup.

Investing in quality components that are likely to remain relevant for a longer period is a smart move. Look for products with good driver support and a strong reputation for reliability. Also, consider modular designs that allow you to upgrade individual components without replacing the entire system.

Personalizing Your Racing Experience

Custom Paint and Design

Okay, so you’ve got your sim racing cockpit built. Now comes the fun part: making it yours. Think about it – this is your personal racing space, so why not give it some flair? Custom paint jobs are a great way to start. You could go for a replica of your favorite race team’s livery, or just pick a color scheme that you really like. Don’t be afraid to get creative! You can find stencils online, or even try your hand at freehand designs if you’re feeling artistic. It’s all about making it unique. I saw one guy who even added some cool cockpit accessories to his setup, like LED strip lights that changed color with his in-game RPMs. Pretty neat, right?

Adding Unique Accessories

Beyond paint, accessories can really set your cockpit apart. Think about what kind of racing you enjoy most. Rally racing? Maybe add a co-driver display or a realistic handbrake. Formula 1? How about a replica steering wheel with all the buttons and dials? The possibilities are endless. Here are a few ideas to get you started:

Button boxes: Add extra controls for in-game functions.
Tablet mounts: Display telemetry data or use as a virtual dashboard.
Custom stickers and decals: Show off your favorite brands or create your own designs.

It’s easy to get carried away with accessories, but remember to prioritize functionality. A cool-looking accessory that doesn’t actually improve your experience is just clutter. Think about what will actually make your racing more enjoyable and immersive.

Creating a Themed Environment

Want to take your immersion to the next level? Consider creating a themed environment around your cockpit. This could be as simple as adding some racing posters to your walls, or as elaborate as building a full-blown replica of your favorite garage. I’ve seen some pretty impressive setups online, with everything from tool chests and spare tires to vintage racing memorabilia. Even something as simple as a racing-style chair or a gear shifter can make a big difference. The key is to create a space that transports you to the racetrack every time you sit down. The goal is to make your sim racing setup feel like a natural extension of your passion for motorsport.

Here’s a simple table to help you brainstorm:

Theme	Possible Accessories
Rally Racing	Co-driver display, handbrake, mud flaps (for show!)
Formula 1	Replica steering wheel, telemetry display, pit board
Classic Racing	Vintage posters, classic racing suit replica

Ultimately, personalizing your racing experience is all about making it your own. Don’t be afraid to experiment and try new things until you find what works best for you. After all, it’s your cockpit, your rules!

Final Thoughts on Your Racing Sim Cockpit Journey

So, there you have it! Building your own racing sim cockpit might seem like a lot of work, but trust me, it’s totally worth it. Each piece you add, from the wheel to the seat, brings you closer to that real racing feel. Remember, it’s all about what feels right for you. Don’t be afraid to tweak things as you go along. Whether you’re going for a full setup or just a few key components, make it your own. Now, get out there and enjoy the thrill of racing from your own home!
